Best price powerful HD Cofdm analog wireless audio video transmitter

Name: Best price powerful HD Cofdm analog wireless audio video transmitter
Brand: Ding Shen
Price: 1 USD

Best price powerful HD Cofdm analog wireless audio video transmitter Manufactures

Brand Name : Ding Shen

Model Number : DS-HDT5000

Place of Origin : Guangdong,china

MOQ : 1set

Price : Negotiaiton

Payment Terms : T/T

Supply Ability : 1000pcs/month

Delivery Time : 3-7 working days

Packaging Details : 220*150*60mm

Consumption : <40W

Modulation : COFDM

Encryption : AES128/256bits

Contact Now

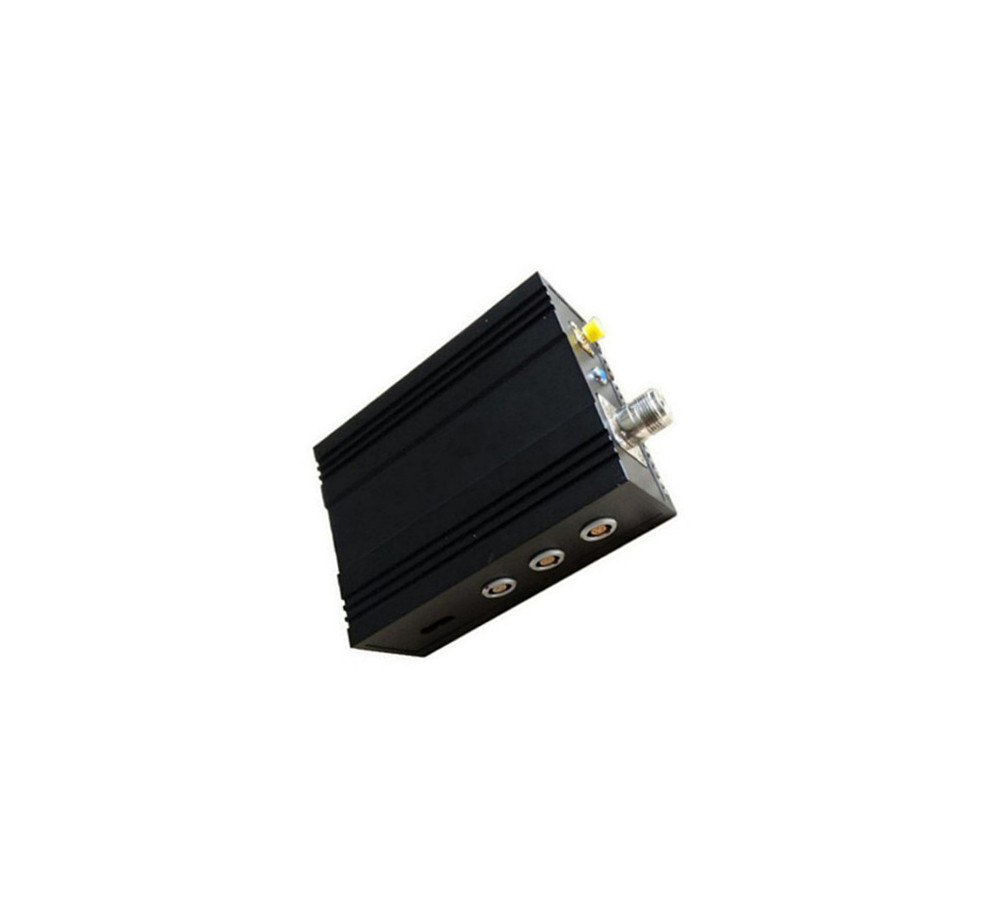

Such new design 1080P HD transmitter is a powerful HD transmit system, using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. Support full HD 1080P H.264 encoding format and HDMI/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.

Transmitter parameter:

Frequency	300-900Mhz or other frequency customized
Modulation	COFDM
Consumption	<40W
Encryption	AES 128 bits
Constellation	QPSK(4QAM),16QAM,64QAM
FEC	1/2 2/3 3/4 5/6 7/8
Guard Interval	1/32 1/16 1/8 1/4
Carrier	2K,8K
Bandwidth	2/3/4/6/7/8MHz (option)
Transfer rate	6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
RF power	2~5W adjustable
Video input	HDMI,CVBS,AHD,SDI (option)
Video coding	MPEG-4/H.264
Video resolution	19201080P/I@60fps; 1280720P/I@60fps; 704*576 PAL
Transmission distance	100km LOS from air to ground; 3-5km NLOS on ground station
Working voltage	DC12V
Working Temperature	-20℃ -- +55℃
Dimension	22015060mm
Weight	1362g
Box colour	Black
Antenna port	N type
