Product Description

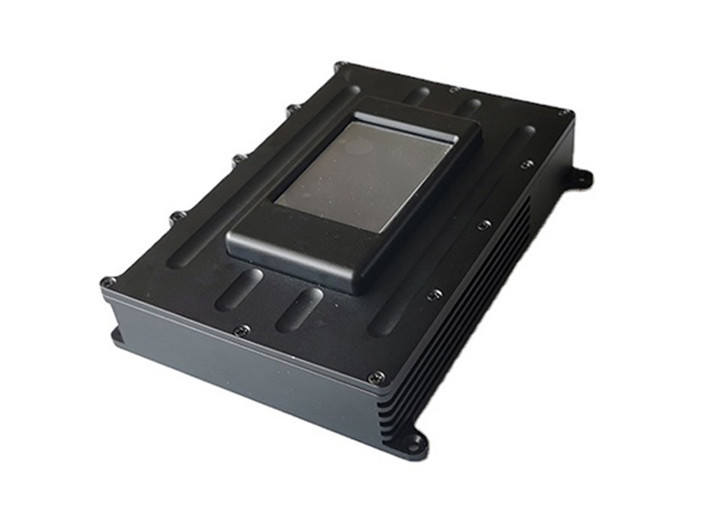

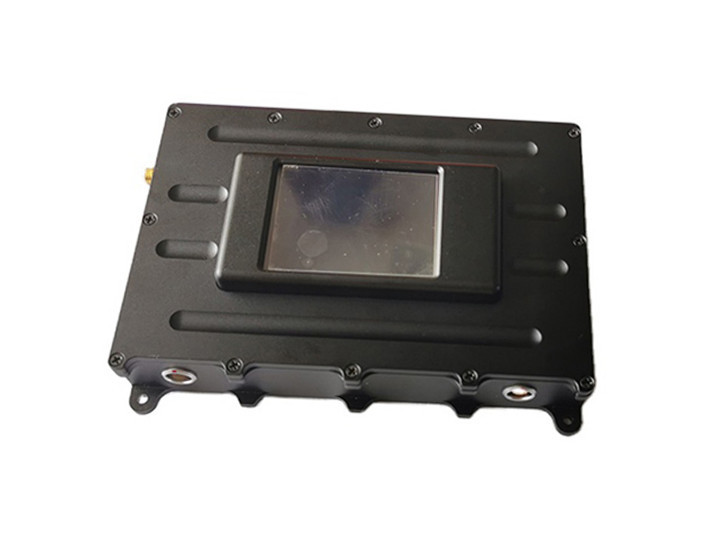

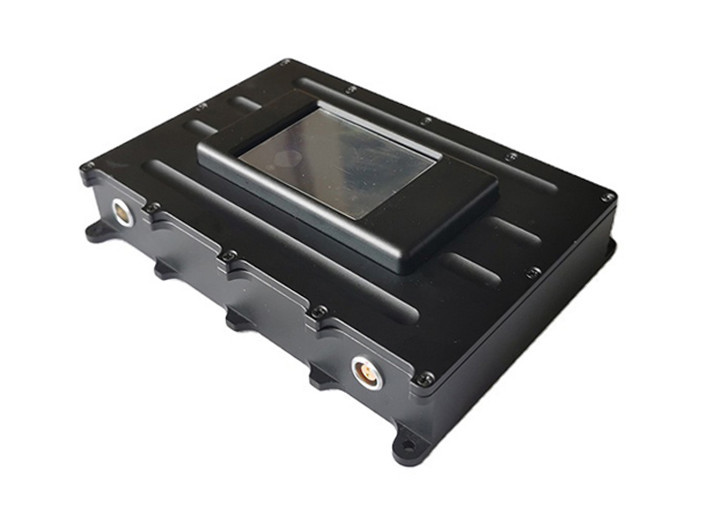

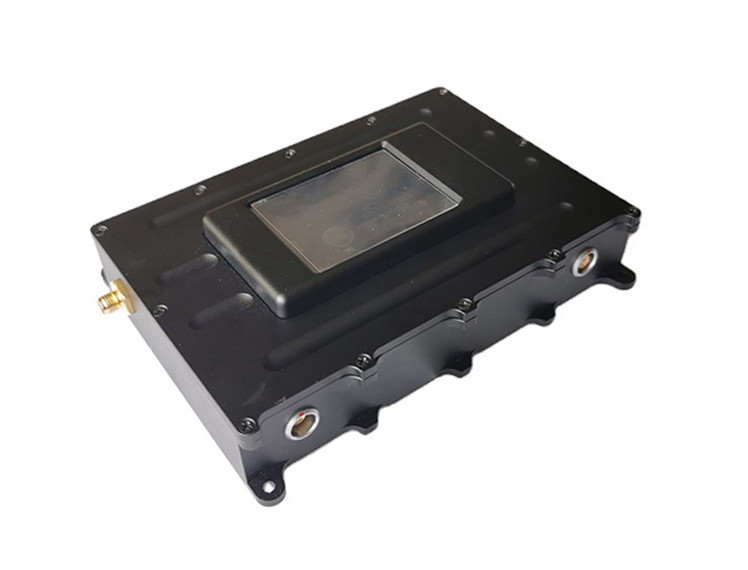

Such new design 1080P HD transmitter KP-HDT2W is a powerful HD transmit system, using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. Support full HD 1080P H.264 encoding format and HDMI/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.
Transmitter parameter:
| Power section |
| DC Input | DC11V~DC16V |
| Working Current | ≤1.1A DC12.5V |
| Transmitter section |
| Frequency range Output | 250MHz-4400MHz, can be customized according to customer's request. |
| Modulation | COFDM |
| RF bandwidth | 4/8MHz(adjustable) |
| Power output | 1-2W(adjustable),in 1dB step |
| SHG | >52dBc |
| Encryption | AES128/256bits |
| Constellation | QPSK,16QAM,64QAM |
| FEC | 1/2,2/3,3/4,5/6, 7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Carrier | 2K |
| Flatness | Full band≤2dB,8MHz≤0.5dB |
| AV Interface | HDMI/SDI(have to choose one) |
| CNR(weighting) | 58dB |
| Sloping field SNR(unweighted) | ≥50dB |
| Analog Audio |
| Balanced audio input range | Vmax=±15V |
| Unbalanced audio input range | Vmax=3Vpp |
| HD interface | SDI/HDMI(single selection) |
| Encryption | AES 128/265 bit / ALLTECH Basic scrambling
KIIMPOK TECHNOLLOGY CO..,, LLIIMIITED D |
| Standard | SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M |
| Input range | 800±80(mV) |
| Versions | HDMI 1.3 |
| HDCP protocol | Yes |
| Encoding support |
| AV rate | 64,96,112,128,160,192,224,256,320,384Kbps(adjustable) |
| Audio encoding mode | MPEG1 Layer2 |
| CBER | <2.0E-4 |
| Video resolution | Maximum 1920×1080P/I@ 60P |
| Video coding | H.264 |
| Video rate | 500kbps-16.68Mbps(autoadaptation) |
| Format | YCbCr4:2:2 |
| OperatingTemperature | -25℃~55℃ |
| Storage Temperature | -40℃~70℃ |
| Distance | 20-60km LOS distance(on air) 1-3km NLOS distance(Ground to ground) |
| Appearance characteristics |
| Dimension | 167*90*25mm |
| Weight | 515g |
Features:
1. Low delay, lightweight, live broadcast;
2. Support Full- HD quality image;
3. Support 1080i/1080P HD transmission;
4. COFDM modulation;
5. Built-in with HDMI or HD-SDI interface(single selection);
6. Support composite standard video and balanced audio input;
7. All parameters can be adjusted by user;
